পণ্যের বিবরণ:
|
Brand: | AUO | Diagonal Size: | 15.0" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | Power Supply: | 3.3V (Typ.) |
Contrast Ratio: | 800:1 (Typ.) (TM) |
Basic Information : | Brand Name | Model Name | Type | Model Alias |
---|---|---|---|---|

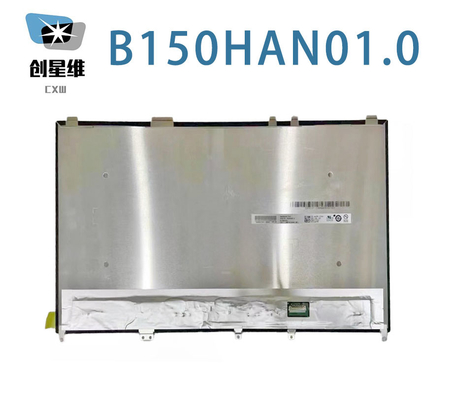

B150HAN01.0 | a-Si TFT-LCD , LCM | - | ||
Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
0 ~ 50 °C | -20 ~ 60 °C |
Screen Size : | 15.0" | |||
---|---|---|---|---|
Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
1920(RGB)×1080, FHD | RGB Vertical Stripe | - | - | |
Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
Flat Rectangle | 16:9 | Landscape type | Slim (PCBA Bent, T≤3.0mm) | |
Holes & Brackets : | Face mounting holes |
Basic Information : | Luminance | Work Mode | Contrast Ratio |
---|---|---|---|
- | AHVA, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
Good View at | Viewing Angle | Response Time | |
Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
6485K | 262K (6-bit) | X:0.313; Y:0.329 |
Refresh Rate : | 60Hz |
---|---|
Reverse Scan : | No |
Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
---|---|---|---|---|---|---|
WLED | Edge light type | 15K(Min.) | - | - | - | |
Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
With LED Driver | Included in signal interface |
Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
---|---|---|---|---|---|---|
3.3V (Typ.) | - | - | ||||
Interface Features : | Signal Type | Physical Type | Interface Position | |||
LVDS (2 ch, 6-bit) | Connector |
whose pixels are arranged in RGB Vertical Stripe., shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, B150HAN01.0 can provides 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B150HAN01.0 utilizes LVDS (2 ch, 6-bit) as it's signal inputting systerm Connector with power supply voltage of 3.3V (Typ.).
