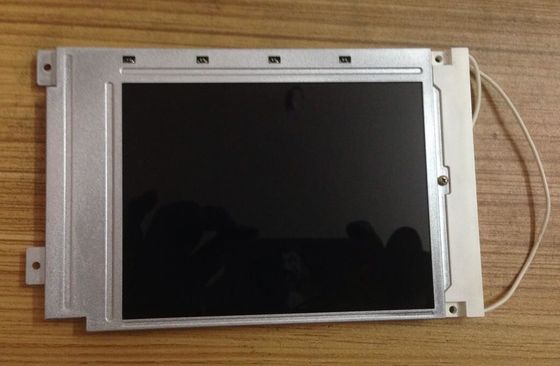

11.3" LCM 640×480RGB  150cd/m² LM64C391 Sharp TFT LCD Display

LM64C391 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 230.375(W)×172.775(H) mm, outline size of 271.5(W)×199.5(H) mm, viewing area size of 234.4(W)×176.8(H) mm, net weight of 670g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM64C391 can provides 150 cd/m² display brightness 25:1 transimissive contrast ratio, 30/30/25/15 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 10K hours, external backlight driver is additionally needed.
